Bat Listener Kit

  • £2000


Welcome to fascinating world of bats! This updated Bat Listener can hear the ultrasonic sounds created by bats and convert them to a lower frequency so that you can hear them communicate, navigate and seek them!

Bats use ultra-sonic pulses to navigate and to detect prey. These pulses are very high pitch, in the region of 40-120kHz, around 5 times the maximum frequency humans can hear. The Bat Listener is an electronic circuit that converts the high pitched sounds produced by bats to a human-audible level. For extra fun use the Bat Listener to investigate other gadgets which make a high frequency noise .

You can hear compact fluorescent lights screaming away, the squeaks from sticky tape as it is unwrapped and the high frequency power supplies which power the back-lights in phones and laptops.

This kit has also been used to check if ultrasonic pet scarers are still working, check for gasses leaking from pipes and listen to the noises made by rats!



PCB and components in the kit (enclosure parts not shown).

The kit of components includes:

  •  Bat Listener Printed Circuit Board
  • 16x Capacitors
  • 13x Resistors
  • 3x Integrated Circuits (ICs)
  • 3x IC Socket Connectors
  • 4x Diodes
  • Transistor
  • Ultrasonic Receiver
  • Speaker
  • Switch
  • Potentiometer
  • Instruction Booklet

Please note: While not difficult to make, this kit does require quite a lot of soldering. It is recommended for people who have already done a bit of soldering and will take in the region of 1-3 hours to solder.

This kit has been re-designed from feedback from our previous kit. It is easier to build, requiring less fiddly wires and additional functionality, such as the LED output and an output for a micro-controller. We have kept the kit at the same low price.

We also sell this kit with a laser cut enclosure, making a robust and easy-to-use unit:

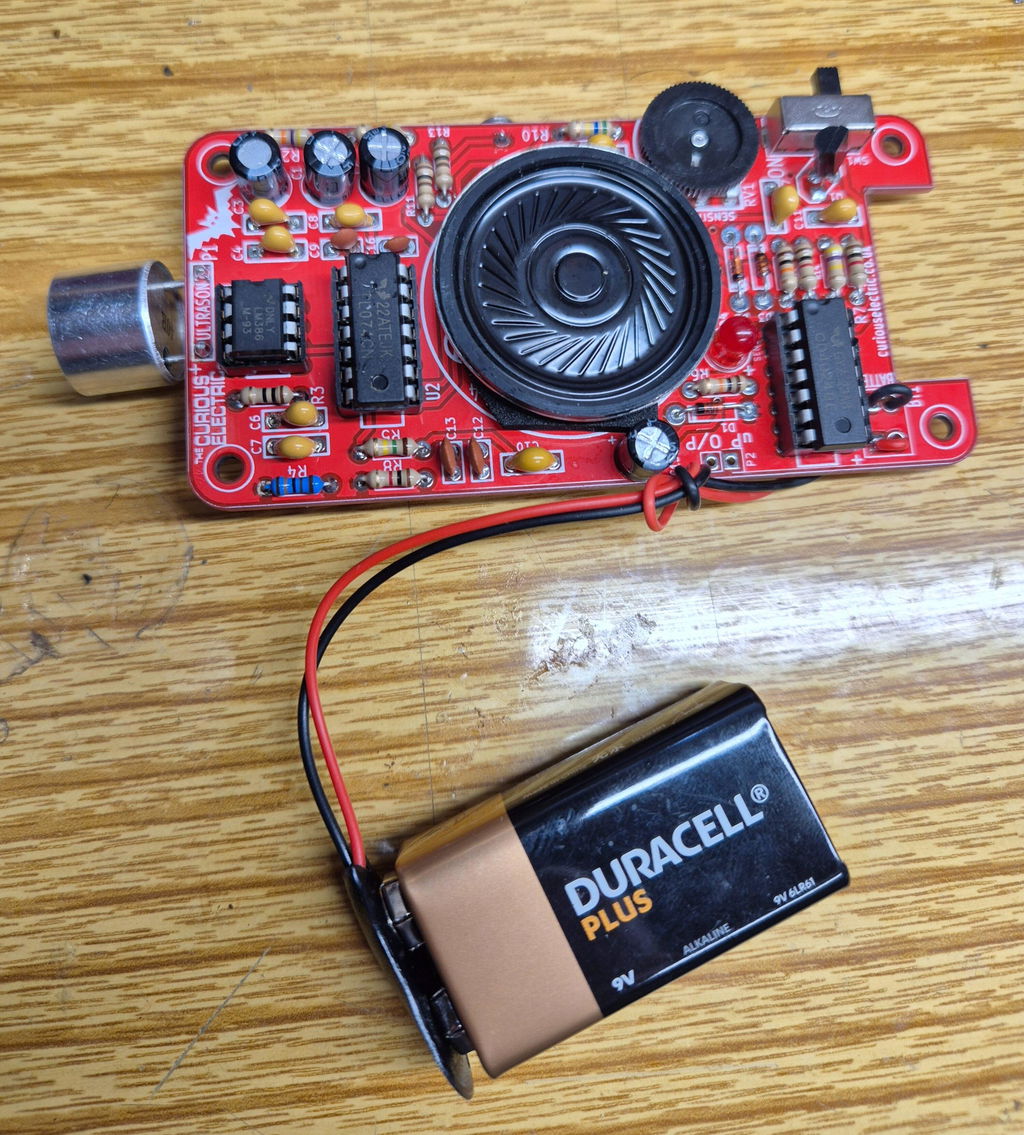

The fully built kit and enclosure.

Instructions for both the circuit and the enclosure are downloadable here.

All the files are available via our github repository. This includes the PCB schematic and design (done using KiCAD), the instructions and the enclosure designs (as .dxf desings).

Please find the "Soldering is Easy" guide available here.
